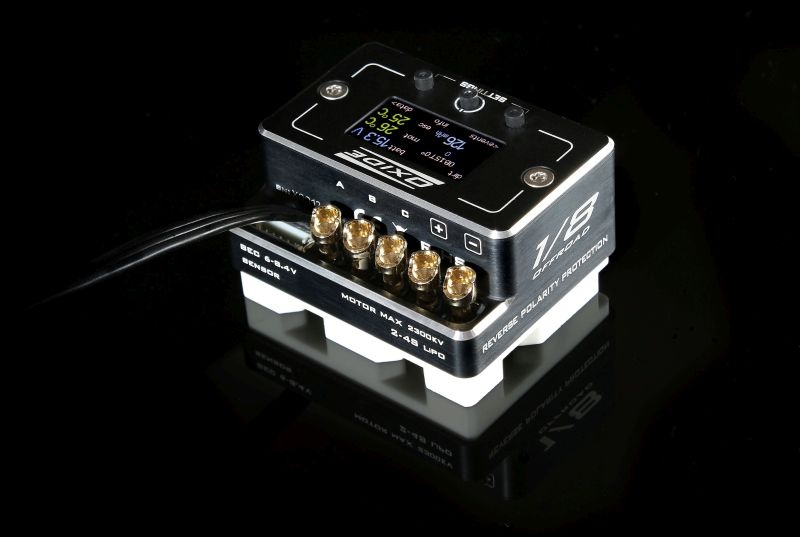

ELCERAM ELC011 - Oxide G1 - 1:8 Offroad Brushless High End 2S-4S Ceramic ESC

The new wonder from the Czech Republic! Now also specifically designed for 1:8 off-road classes!
With an integrated TFT LCD display and advanced ceramic technology.
And for the first time with external soldering sockets!

From here on, the manufacturer's description follows:

The Oxide 1/8 from ELCERAM brings groundbreaking innovations in real-time monitoring of battery current and discharge, as well as intelligent algorithms to protect the ESC. Utilizing advanced cooling technology based on an aluminum oxide ceramic cooler, the Oxide 1/8 offers excellent thermal conductivity and can be used with powerful motors up to 2300kV. It offers revolutionary real-time monitoring of battery current and discharge, as well as innovative intelligent algorithms to protect the ESC in the event of a motor failure or mechanical problem. Featuring reverse polarity protection and improved water and dust resistance, the ESC stands out with its matte TFT LCD color display, eliminating the need for an additional interface.

Programmable Parameters and Features: • Revolutionarily easy Rx calibration. • Real-time monitoring: battery voltage, ESC and motor temperatures, motor diagnostics, and more. • Revolutionary battery current and discharge monitoring. • Pre-race diagnostics: motor temperature, sensor cable, faulty motor, battery, BEC voltage, and more. • Easy programming: throttle, brake, boost and turbo timing, Hall angle, and many other functions. • Race data logging, temperature and other curves, histograms, and more. • Adjustable maintenance reminder for easy review. • No programming interface required.

Key Features: • TFT color LCD display with matte finish – The 160 x 80 pixel color LCD display allows you to set all parameters and review all data directly on your ESC without the need for a programming card or mobile app. Everything you need is built into your ESC. It's really easy to use - 3 buttons allow you to quickly set everything you need, and a single glance is enough to check all the parameters necessary for the race. Simple. Fast. Precise. • Easy review and adjustment - The display gives you an overview of all important data and events - before the race, during the race, and after the race. You can quickly change your settings and get instant feedback, without the delay of connecting an external control interface. • High-performance electronics for professional RC racing. • Advanced cooling technology for 1/8 scale RC cars. • Advanced cooling technology - The advanced cooling technology used by OXIDE is based on an aluminum oxide heatsink specially developed for OXIDE, which gives the ESC excellent thermal conductivity and long-term resistance to high temperatures and loads. • MOSFET transistors are cooled directly without an additional thermal resistance layer! During production, ELCERAM used very thick layers of special materials such as silver and copper for very low internal resistance and the latest technologies, inspired by advanced power systems developed and manufactured by ELCERAM. • Reverse polarity protection. • Intelligent algorithms to protect the ESC. • Dimensions – Despite its many great new features, the OXIDE 1/8 is truly compact. Its dimensions are suitable for all types of 1/8 off-road RC cars. Furthermore, 70% of the weight is located on the bottom of the ESC, giving your car even more stability! • Easy Installation – Installing the OXIDE 1/8 is quick and easy – with the included double-sided tape or two M2.5 screws. In addition, the ESC cover with display and buttons can be easily replaced in the event of an accident. The cover can be rotated 180° if necessary.

Technical Specifications: • Scale: 1/8 Off-Road • Type: Brushless Sensored • Waterproof: Yes • Reverse Polarity Protection: Yes • Relevant Parameters: Continuous/Peak Current: 200A / 1500A • Input Voltage: 2S – 4S LiPo • BEC Output Voltage Adjustable: 6.0 – 8.4V • BEC Continuous/Peak Current: 6A/15A • Dimensions: 50x40x28 mm • Weight: 112 g without cable / AWG11 – 200 mm cable • BEC Cable Length: 180 mm, gray stripe is negative pole

Applications: • Applications: Brushless sensored DC motors up to 2300 kV • Vehicles: 1/8 buggies, truggies, and monster trucks • Supports Zero Timing (Blinky Mode). • External capacitors required (included)
